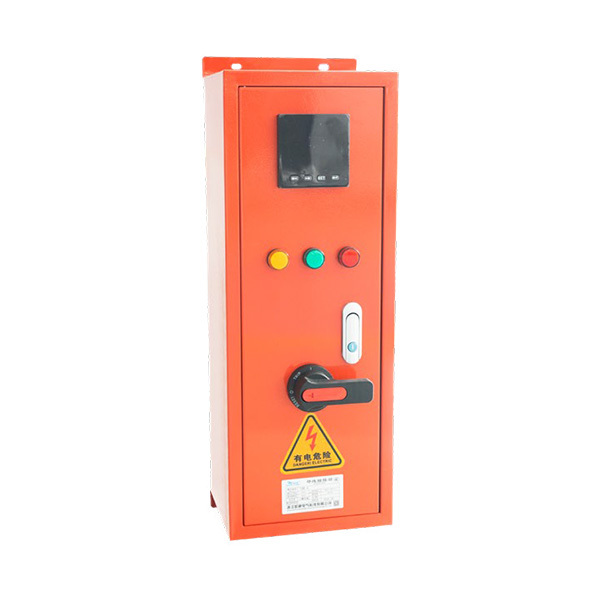

Name: High-Density Plug-in Box
Brand: MY SHOP
Availability: InStock
Rating: 5 (1 reviews)

Description

Cable connection

The tap-off unit supplies power to loading equipments with flexible outputting line collocated with protection sleeves. The diameter depends on the cable size.

Safe operation

● Phase-Reversal Prevention Installation

● IP54 Protection Rating

● Silver-Plated Contacts ensure reliable electrical continuity.

● Multiple Internal Interlocks prevent door opening while energized, ensuring operator safety.

Plug-in Box Features

● Available in circuit breaker, switch-fuse, and fuse types with High, Medium, and Low breaking capacity options

● Three operation modes internal, external, and linkage operation to meet diverse customer needs

● Linkage mechanism allows ground-level operation for enhanced safety

● Grounding contacts engage before phase contacts and disconnect last to ensure operator protection

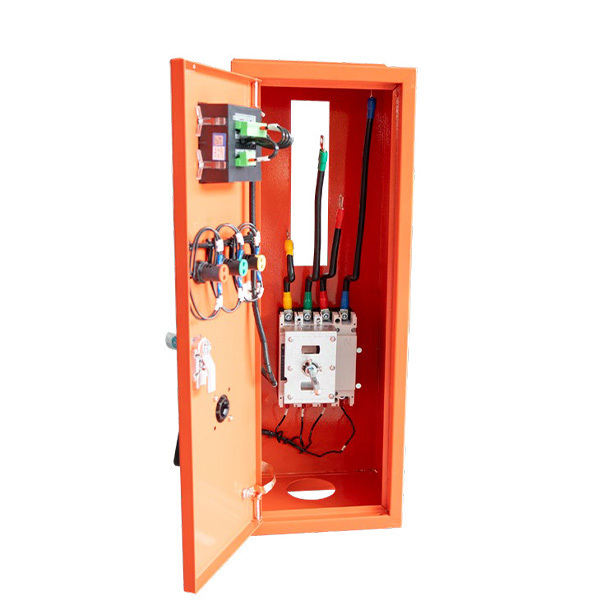

● Built-in protective shield prevents accidental contact when the door is opened

● Interlocked safety shutter prevents access while energized

● Interlocked locking foot ensures complete insertion before power-on

Product Specifications

Code	Rated Current (A)	Length L (mm)	Width W (mm)	Height H (mm)	Remarks
T1..M..	125A	460	250	250	Plug
T2..M..	250A	500	260	280	Plug
T3..M..	630A	650	340	320	Plug
T4..M..	1000A	1000	450	400	Bolt
T5..M..	1600A	1500	450	400	Bolt
