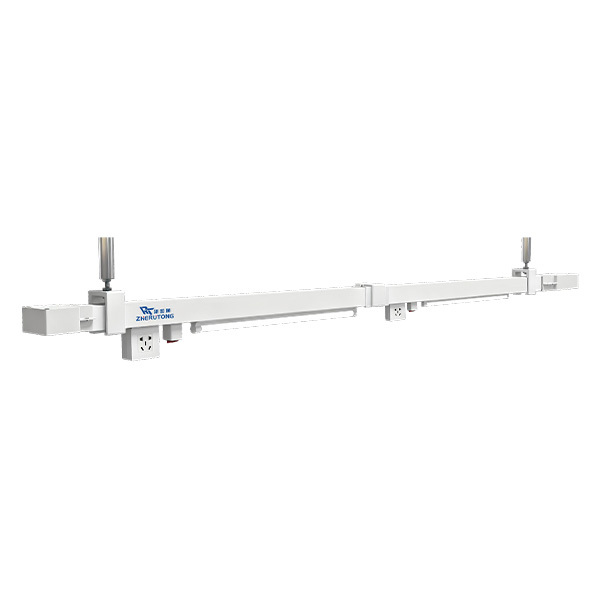

Intro：Q-Type PVC Power Supply Lighting Busway Rutong Q-Type PVC power supply lighting busway ensures safety and aesthetic appeal. The PVC channel contains 7-pole copper busbars, with the lower five poles designed for three-phase four-wire or three-phase five-wire power supply, and the upper two poles for single-phase lighting supply.

GET A QUOTE

Description

Product Overview

Q-Type PVC Power Supply Lighting Busway Rutong Q-Type PVC power supply lighting busway ensures safety and aesthetic appeal. The PVC channel contains 7-pole copper busbars, with the lower five poles designed for three-phase four-wire or three-phase five-wire power supply, and the upper two poles for single-phase lighting supply. Alternatively, the lower five poles can be configured for singlephase power line distribution, while the upper two poles provide single-phase lighting,Rated current ranges from 18A to 100A, and its IP30 protection rating meets advanced domestic standards, ensuring stable and safe operation under various environmental conditions. It is widely suitable for power supply and lighting applications in garment, footwear, electronics workshops, underground parking lots, supermarkets, and other spaces.

Product Features

● The lighting busway enclosure adopts track-mounted aluminum alloy or PVC profiles, featuring simple and quick assembly with an aesthetic appearance.

● All current ratings utilize a uniform housing specification with standard connection terminals, ensuring excellent compatibility.

● nsulating components securely support and separate insulated conductors, guaranteeing reliable electrical safety.

● Standard two-hole and three-hole sockets are employed for convenient and rapid branch power extraction.

● Socket configuration contributes to balanced three-phase loads.

● Multiple on-site installation options are provided to accommodate flexible user requirements

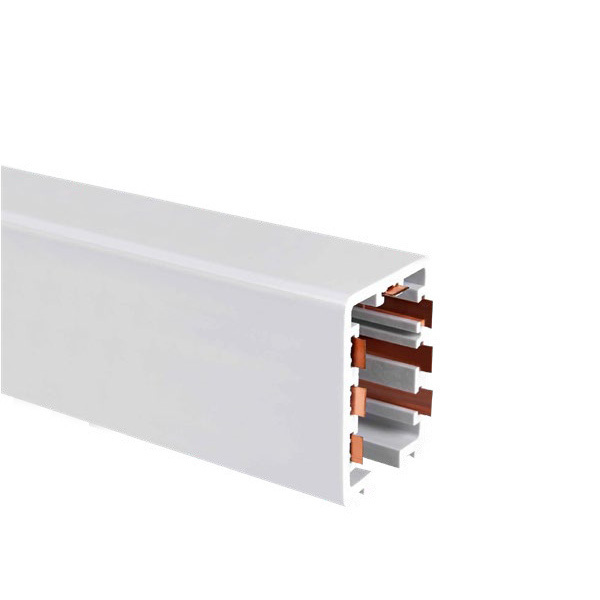

Main Busbar with PVC Housing

Model: JTQ-PK-5-30A / JTQ-PK-5-50A

NO.: 190-2-1 / 190-2-2

Standard length: 4M /4M

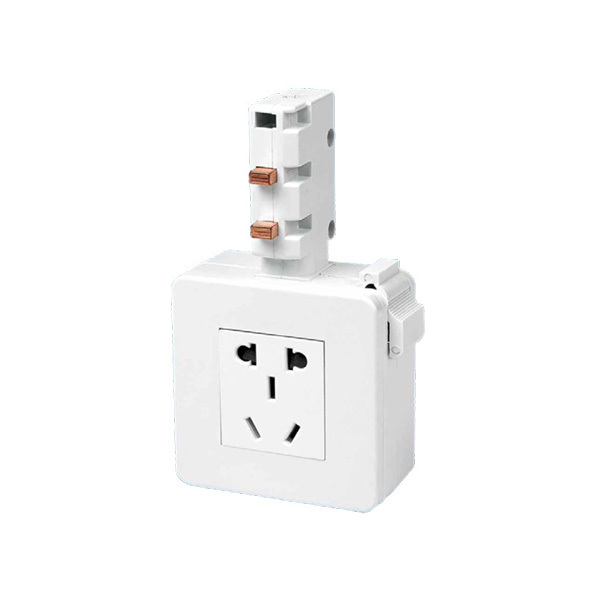

Rotary Single Phase Socket

Model: JTQ-LK-X-CZ1

NO.: 190-4

Rotary Triphase Socket

Model: JTQ-LK-X-CZ3

NO.: 190-5

5-Pole Small Power Distribution Box

Model: JTQ-LK-5-PDH

NO.:190-13

Lamp Current Collector+Switch

Model: JTQ-LK-JDQ+KG

NO.: 190-12

Luminaire

Model:

YC-T8L03-14W

YC-T8L03-16W

YC-T8L03-18W

NO.:

180-7

180-8

180-9

Copper Strip Buckle

Model: JT-LJK-30A

NO.: 190-15

Rotary Power Collector

Model: JTQ-LJ-DM

NO.: 190-14

Beam clamp

Model: JTQ-PK-DJ

NO.:190-7

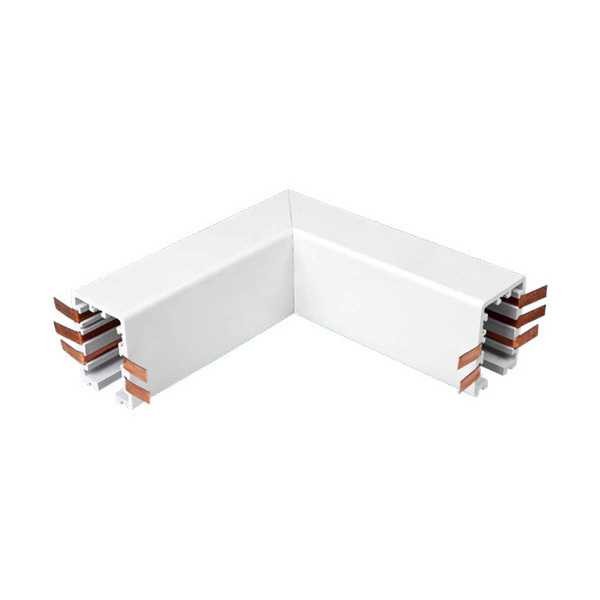

Connection unit

Model: JT1-PK-LJH

NO.: 190-8

Model: JTQ-PK-DM

NO.: 190-10

Terminal Feeding

Model: JTQ-LK-DG

NO.: 190-09
